APEX Liviau S touch panel AV control system

Touchscreen audio / video / lighting controller

LIVIAU

AV made simple

LIVIAU S takes a fresh approach to AV control for hospitality, retail and corporate applications, combining a comprehensive lighting controller, audio mixer/processor, audio/video file server and stereo power amplifier in a compact, elegant touch panel. LIVIAU’s clean, clear user interface empowers non-technical users to easily control audio, video playback and lighting, while its scheduling tools allow the room to be fully automated. Configuration is quick and straightforward – no programming needed!

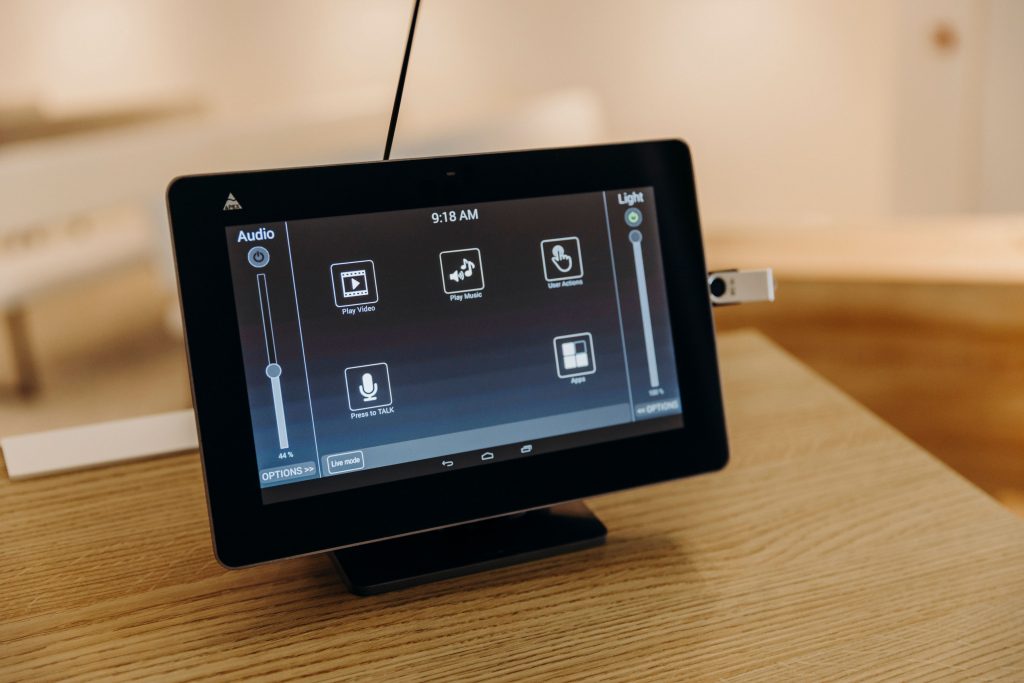

APEX Liviau S touch panel

Applications

Our LIVIAU touchscreen controllers are a cleaner, smarter AV control solution for hospitality, retail and corporate applications. Now non-technical users can confidently control audio, video and lighting control from a single, elegant touchscreen.

Scheduler

Comprehensive scheduling of video and lighting control is provided for regular promotions, advertising, ambience control, safety announcements etc.

Apps

Access a variety of third-party applications, such as Spotify and Tunify from the LIVIAU touchscreen. These built-in music platform connections grant you and your staff permanent access to an immense up-to-date music library.

No Programming Needed

LIVIAU S is a convenient, cost-effective alternative to the usual AV touchscreen solutions. System configuration is quick and simple, with no programming or certified training necessary.

Remote Control

LIVIAU allows businesses to remotely control their outlets from a phone, PC or tablet. Content can be remotely dropped onto the LIVIAU’s hard disk and scheduled for playback, giving business owners confidence that the correct content is reaching customers in their stores / bars / restaurants etc.

Lighting

As well as regular architectural lighting, up to sixteen intelligent lighting devices may be controlled from the LIVIAU S, including moving heads, strobes, RGB devices, lasers, dimmers and more. In addition to its integral DMX512 controller, LIVIAU S also incorporates a programmable lighting mixer offering 24 cues, 16 fixtures, a sequencer with fade time and an effects generator with pan & tilt.

Video

LIVIAU’s ability to handle multiple video files for promotions / announcements is a powerful asset in retail, worship, hospitality and commercial environments. Content can be looped and may be scheduled and / or triggered from the touchscreen. Videos can be sourced from networked devices, USB or onboard memory.

Audio

LIVIAU S features two balanced mic and four line level inputs, plus two inputs sourced from the HDMI input connector. Two additional internally sourced audio inputs are provided for routing internally stored audio. Six balanced line level outputs are provided, plus the outputs of the internal 50W/channel stereo amplifier and internally sourced audio files. All inputs can be combined and routed to any output using the audio mixing page.

Automation

Featuring 6 GPO & 2 GPIO connections, LIVIAU S can function as a simple room automation system. The integrated event scheduler enables the user to trigger external systems such as electrical screens and drapes, heating systems, projector screens, etc. at specific times.

Specifications

  • Display

    10.1″ multi-touch capacitive screen; ambient light sensor for backlight control

  • Video

    Input: 1 x HDMI 1.4a, 1920 x 1080 p
    Output: 1 x HDMI 1.4a

  • Audio

    Mic inputs: 2x balanced
    Line inputs: 4x balanced
    Line outputs: 6x balanced
    Power amplifier outputs: 2 x 50W into 4 Ohms

  • Comms

    Network: Gigabit Ethernet port
    USB: 1 x USB Type ‘A’
    Wi-fi: Compliant with 802.11 a/b/g/n, 2.4/5.0 GHz MIMO

  • Other

    Lighting control: DMX 512, GPI/O
    GPIO: 8
    Serial port: RS-232C, bi-directional
    Infra red port: 1 x IR, for standard IR LED emitter
    Power requirements: 24 V dc @ 6 A max., via supplied AC PSU

Key features

VIDEO PLAYBACK
Load multiple video files for promotions / announcements for scheduled or manual playback. Videos can be looped and may be sourced from networked devices, USB or onboard memory.
AUDIO PLAYBACK
Audio can be selected and played from any media source and can be easily routed to any output / zone.
SCHEDULER

Comprehensive scheduling of video and lighting control is provided for regular promotions, advertising, ambience control, safety announcements etc.

PRESS TO TALK
LIVIAU’s two mic inputs can be used to page all audio zones.
APPS

Access a variety of third-party applications, such as Spotify, from the LIVIAU touchscreen.
